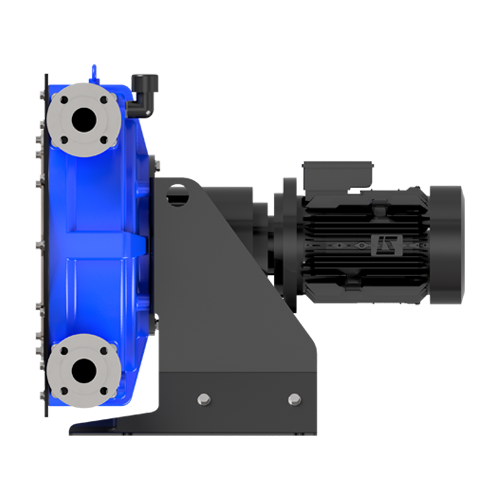

Model I43 is capable of pumping up to 30 gpm and is perfect for dosing any type of media with up to ±1% accuracy. This is due to the excellent flow-rate control, a consistent flow rate in various pressure applications, and gentle pumping.

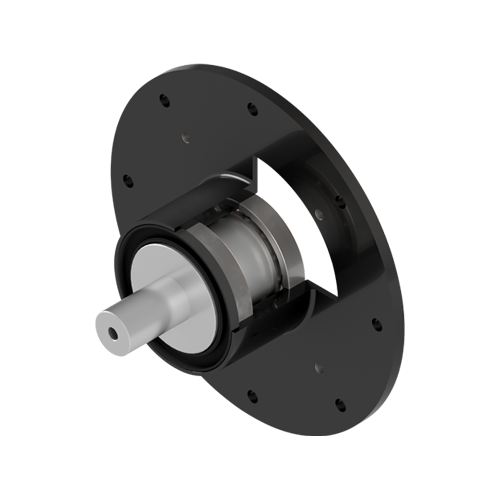

The lack of both valves and mechanical seals makes this model ideal for transferring fluids that are highly abrasive, are viscous, or contain solids in suspension. The heavy-duty, horizontal, monoblock design (with bearing box) makes this peristaltic pump an ideal option for any difficult application. It can also dry run indefinitely. The installation of the bearing box in the pump housing provides perfect alignment and full absorption of the loads on the reducer shaft. The bearing box is made from a central hub that supports the reinforced, oversized bearings and the pump shaft in order to achieve a compact but very robust assembly. It can pump in the most severe conditions with pressures up to 145 psi.

Just like the smaller models, the I43 model utilizes a special hose-compression system that uses XXL rollers to provide a larger contact surface. The newest-technology peristaltic hose is uniquely manufactured with an extruded inner layer, high-density textile reinforcement, and precision-machined outer layer, which ensures perfect compression and quick installation. This technology not only increases efficiency but also maximizes service life and reduces maintenance and operating costs.
