The chemical-version peristaltic hose pumps are an anti-corrosive and unrivaled solution for dosing or transferring acids and other abrasive products.
- State-of-the-art hose available in EPDM rubber
- Tefzel-coated front cover and housing
- Polypropylene or PVDF/PTFE connections
- Hose-leakage sensor
- Pump and roller lip seals in EPDM rubber
- Corrosion-resistant rollers
- Drainage system
Model C35 is a technologically advanced but economically competitive pump. It is capable of pumping up to 15 gpm. This model is highly efficient with a heavy-duty build and a hose-compression system that provides maximum accuracy, effectiveness, and durability. The lack of valves and mechanical seals, the dry running capability, and the unmatched suction power make this peristaltic pump the best option for dosing or transferring highly abrasive, shear-sensitive, viscous, or corrosive media.
The robust Model-C35 pump is constructed from durable materials that are treated with the latest hardening and anti-corrosion processes. It utilizes two integrated bearings (which absorb axial loads between the rotor and the reducer), a rotor assembly with innovative XXL rollers, and a compact mounting system.
Like the smaller peristaltic hose pumps, the Model-C35 pump is extremely dependable. It has a compact, vertical design with a specialized hose-compression system that uses XXL rollers to provide a larger contact surface. The newest-technology peristaltic hose is uniquely manufactured with an extruded inner layer, high-density textile reinforcement, and precision-machined outer layer, which ensures perfect compression and quick installation. This technology not only increases efficiency but also maximizes service life and reduces maintenance and operating costs.
Datasheet
The most compact and heavy-duty solution for medium flow rates and corrosive material
The chemical-version peristaltic hose pumps are an anti-corrosive and unrivaled solution for dosing or transferring acids and other abrasive products.
- State-of-the-art hose available in EPDM rubber
- Tefzel-coated front cover and housing
- Polypropylene or PVDF/PTFE connections
- Hose-leakage sensor
- Pump and roller lip seals in EPDM rubber
- Corrosion-resistant rollers
- Drainage system
Model C35 is a technologically advanced but economically competitive pump. It is capable of pumping up to 15 gpm. This model is highly efficient with a heavy-duty build and a hose-compression system that provides maximum accuracy, effectiveness, and durability. The lack of valves and mechanical seals, the dry running capability, and the unmatched suction power make this peristaltic pump the best option for dosing or transferring highly abrasive, shear-sensitive, viscous, or corrosive media.
The robust Model-C35 pump is constructed from durable materials that are treated with the latest hardening and anti-corrosion processes. It utilizes two integrated bearings (which absorb axial loads between the rotor and the reducer), a rotor assembly with innovative XXL rollers, and a compact mounting system.
Like the smaller peristaltic hose pumps, the Model-C35 pump is extremely dependable. It has a compact, vertical design with a specialized hose-compression system that uses XXL rollers to provide a larger contact surface. The newest-technology peristaltic hose is uniquely manufactured with an extruded inner layer, high-density textile reinforcement, and precision-machined outer layer, which ensures perfect compression and quick installation. This technology not only increases efficiency but also maximizes service life and reduces maintenance and operating costs.
Continue reading
Datasheet
Build your custom peristaltic pump with our free and easy tool:

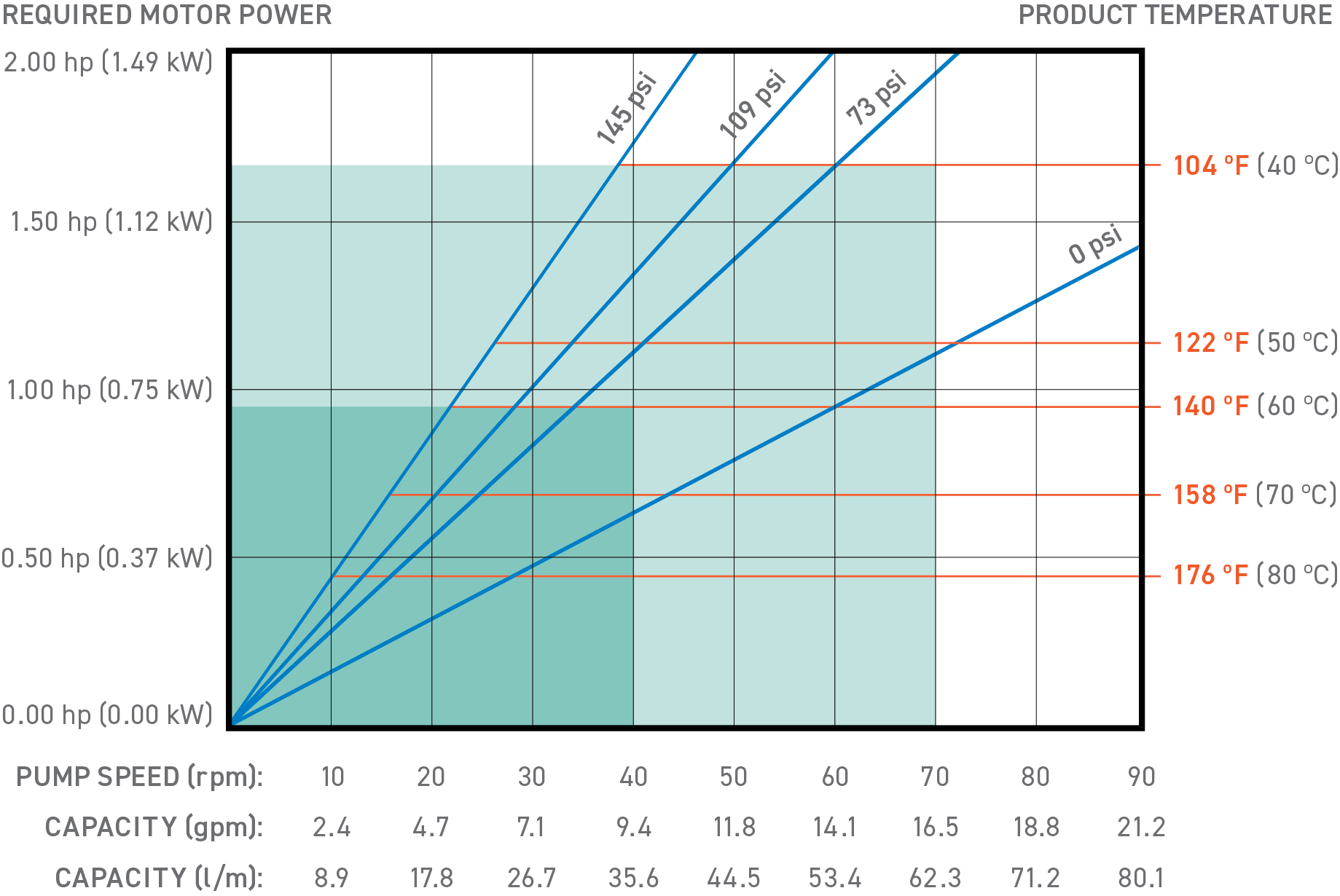

C35 Technical Specifications
Dimensions
*Depending on the driver, dimensions could change.
